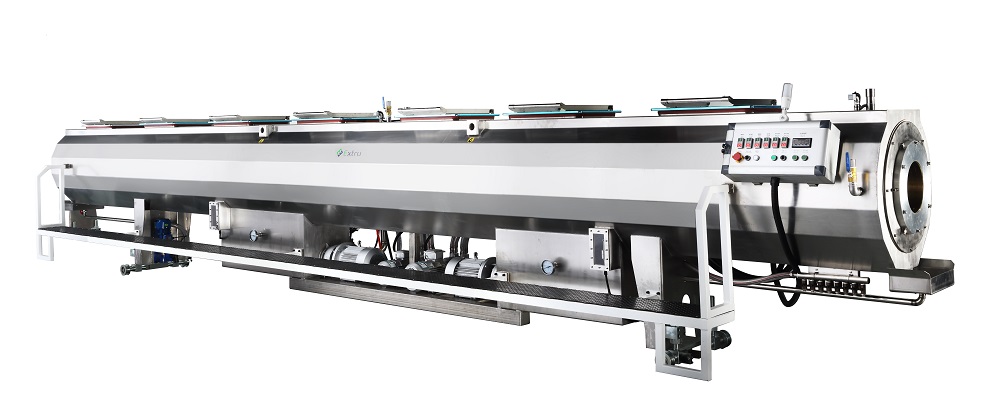

For PVC, CPVC, HDPE, PP-R ,PP-H pipe production
Enhanced Cooling System(ECS)* to realize high speed production
FC controlled vacuum* for lower energy consumption and stable vacuum
304 Stainless steel tank, brushed surface
With suitable pipe supporter to keep good ovality
Equipped front light for working status observation
Model |
Tank Thickness |
Working Range(mm) |
Tank Length(mm) |
EXT-VB32-9 |
δ3 |
Ф6-Ф32 |
9000 |
EXT-VB63-9 |
δ4 |
Ф10-Ф63 |
9000 |
EXT-VB63S-5.8 |
δ4 |
2-Ф10-Ф63 |
5800 |
EXT-VB160-9 |
δ4 |
Ф20-Ф160 |
9000 |
EXT-VB250-5.8 |
δ4 |
Ф50-Ф250 |
5800 |
EXT-VB250-9 |
δ4 |
Ф50-Ф250 |
9000 |
EXT-VB315-5.8 |
δ4 |
Ф63-Ф315 |
5800 |
EXT-VB315-9 |
δ4 |
Ф63-Ф315 |
9000 |
